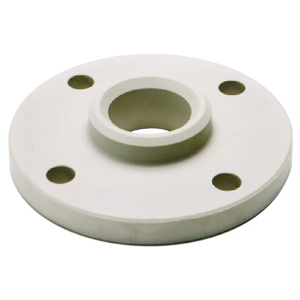

Installation flange

Installation flange

for Pump tube PP ø 41 mm

Material:

Preis anfragen
Please enter these characters in the following text field.

Mit * gekennzeichnete Felder sind Pflichtfelder.
  • 0110-191
  • op verzoek
Description: The flange is for fastening the Drum- and container pump according to...more
Product information "Installation flange"

Material: Polypropylene (PP)


Materiaal: PP

Description:

The flange is for fastening the Drum- and container pump according to DIN 2573, DN 50 or PN 6 to a counter flange. The flange is welded directly to Pump tube

  • Materials: PP / PVDF / Alu / Niro

Features & Advantages

  • Pump diameter 41 mm
  • Stabilization of the pumping unit
Technical data
▼ EIGENSCHAFTEN | PROPERTIES | EIGENSCHAPPEN ▼
Produktgruppe: Fasspumpen / Containerpumpen
Accessories group: Adapter / Foot strainers

* The maximum flow rate is a value determined by means of a test bench and measured with water at a medium temperature of approx. 20 °C. The measurement is carried out at the pressure joint of the pump, without hose, nozzle or flow meter. The achievable flow rate in use is lower and depends on the individual application, the liquid properties and the configuration of the pump. The max. delivery head also depends on the pump design, motor and fluid. The viscosity values are determined with oil.

** Test assembly: Medium water / diesel, flow in preferred direction, settling section 0.2 m upstream and downstream of flow meter
